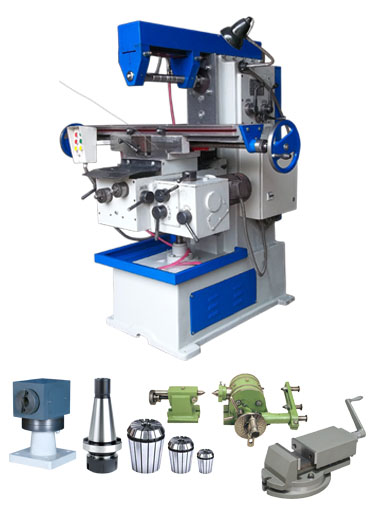

Universal All Gear Head Milling Machine No 2 Download Catelog

Extra Attachment

SPECIFICATION:

Sunrise Industries has come out with horizontal and universal type milling machine for precise and quick production of small and large components.

The machine has Twelve spindles speeds and 12 feeds. The machine have automatic feeding arrangement in longitudinal. Table in both directions. The vertical and cross table movements are also automatic.

The machine is constructed with Grade 1 Casting, Spindles, Shafts, arbor, Screws, Gears and Spacers are made from Alloy Steel. Spindle Gear Box is oil bath lubricated.

Working Surface : 1200 × 300 mm
Number of T-Slots : 3-16 mm
Maximum Distance from Spindle Centre to Underside of Over Support : 125 mm

MOVEMENTS:

Longitudinal Movement of the Table by Lever / Screw : 650 mm
Cross Movement of the Table by Screw : 250 mm
Vertical Movement : 400 mm
Longitudinal & Cross Feed : 16-400 mm/min
Vertical Feed Swivel of Table : 45°

MILLING SPINDLE:

Spindle Bore Taper : ISO - 40
Arbor : 25.4 mm

REVOLUTION OF SPINDLE:

No. of Spindle Speed : 12
Range of Spindle Speed : 50-800 RPM
Number of Feeds : 12

ELECTRICALS :

Main Drive Motor : 4 KW 1440 RPM
Feed Motor : 0.75 KW
