| MODEL |

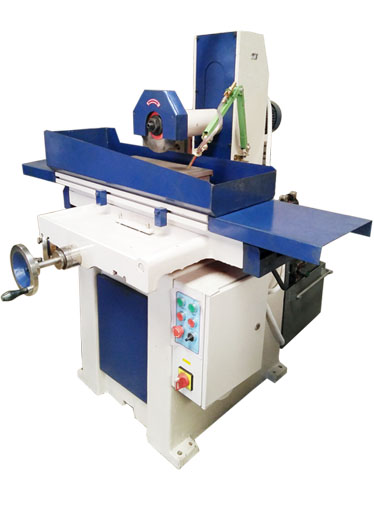

SSG-500 |
| Clamping Area |
: 540 × 210 mm |
| Grinding Area |
: 460 × 200 mm |
| Distance Table Center To Spindle |
: 405 mm |
| Longitudinal Travel |
: 500 mm |
| Cross Travel (Variable DC Servo ) |
: 225 mm |
| Vertical Travel |
: 330 mm |
| Size of Grinding Wheel |
: 200 × 13 × 31.75 mm |
| Speed of Grinding Wheel |
: 1 HP 2880 RPM |
| Hydraulic Motor |
: 1.5 HP |
| Oil Tank Capacity |
: 60 LTR. Approx |
| Hydraulic Table Speed |
: 1 to 25 mm/min. |
| Approx weight of the Machine |
: 1200 Kg. |
|
